Wall mounted signal towers with LED warning lamps
Patlite type WE safety lights

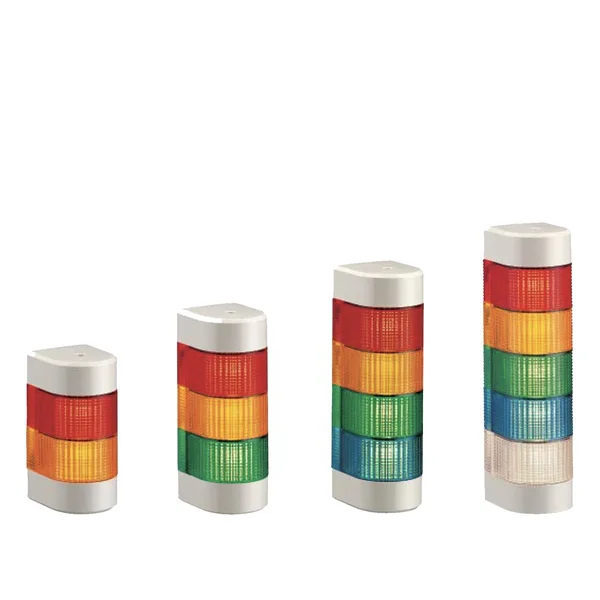

Patlite WE (silver) and WEP (ivory) models are super-slim wall mounted signal towers with a high visibility LED light system.
Three, four or five lights can be in any sequence and a 90 dB audible alarm is optional. Enclosure is IP65.
Other models with LED and incandescent bulbs are available.
| SIZE: | 37.5mm deep |
| INPUT VOLTAGE OPTIONS: | - AC/DC 24 V |
| FUNCTIONS AVAILABLE: | -Continous only |
| -Continuous, Flashing, Alarms | |
| MOUNTING OPTIONS: | Wall mount only: includes 4 mounting screws |
| BODY STYLE: | Pre-assembled, pre-wired, not interchangeable or stackable after purchase |
| TIERS: | 3, 4 or 5 stack versions available |
| MODULE COLOURS: | Red / Amber / Green / Blue / Clear |
| ALARMS (FB STYLE ONLY): | - Alarm 1: selectable, single-tone, intermittent (fast beep) alarm, 90dB (at 1m) |
| - Alarm 2: selectable, single tone, intermittent (slow beep) alarm, 90dB (at 1m) | |
| RATINGS: | - CE |
| - UL Listed (US) | |
| - UL Listed (Canada) | |
| - RoHS | |
| PROTECTION | - IP-65 (non-FB style) |
| - IP-54 (FB style) | |
| CONTROL OPTIONS: | - Dry contact closure such as switches or relay contacts |
| - Open-collector transistor (NPN or PNP for DC24V, NPN for AC90-250V) | |
| - Direct voltage control for DC24V, continuous and alarm functions only |
Part Number GuideWEP/WE type
| Number of stacks | Model | Rated Voltage | Power consumption | Mass |
|---|---|---|---|---|
| 3 Light | -302 | AC/DC 24 V | 1.7 W | 0.26 kg |
| -302FB | AC/DC 24 V | 2.7 W | 0.30 kg | |
| 4 Light | -402 | AC/DC 24 V | 3.2 W | 0.31 kg |
| -402FB | AC/DC 24 V | 2.7 W | 0.35 kg | |
| 5 Light | -502 | AC/DC 24 V | 2.7 W | 0.31 kg |
| 502FB | AC/DC 24 V | 3.7 W | 0.35 kg |
