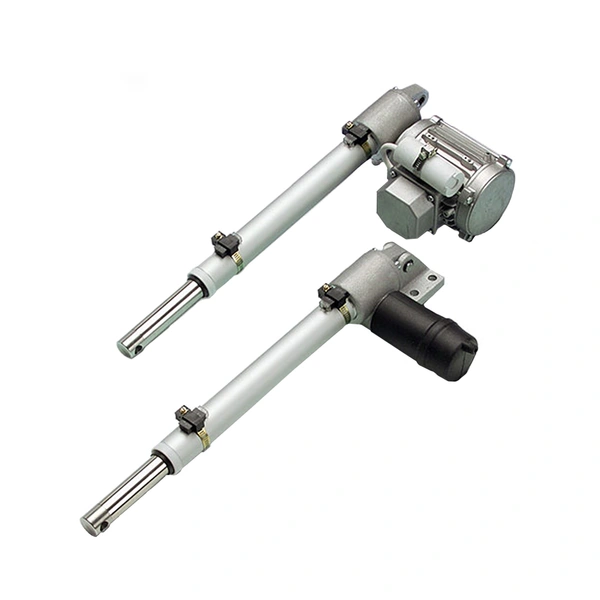

ACME thread linear actuators
AC & DC powered actuators type ATL to 350 kN
These standard series ACME thread actuators suit more complex industrial applications with forces in a range 400 N - 350 kN and with a duty cycle not exceeding 30% in a 10-minute period. Speeds up to 140 mm/s are possible and there is a wide range of models plus modular options. Strokes can be up to 1500 mm subject to buckling limits.
Motors are AC 1 or 3 phase with the option of DC 24 V from ATL20 to ATL40
Options include external stroke limit switches, different end fixings, stainless steel push rod, second input shaft, incremental encoder and safety nut.
| Model | Speed range (mm/s) | Max force (N) | AC motors (KW) |
|---|---|---|---|
| ATL20 | 1.4-93 | 4,000 | 0.09-0.12 |
| ATL25 | 1.9-03 | 6,000 | 0.09-012 |
| ATL30 | 4-93 | 10,000 | 0.18-0.25 |
| ATL40 | 4.5-93 | 12,000 | 0.37-0.55 |
| ATL50 | 5.5-93 | 25,000 | 0.75-2.2 |
| ATL63 | 5.5-93 | 50,000 | 1.5-3.0 |
| ATL80 | 8.5-140 | 80,000 | 3.0-4.0 |
| ATL100 | 9-140 | 200,000 | 8 |
| ATL125 | 9-105 | 350,000 | 15 |
