Suitable for food industry & washdown environments

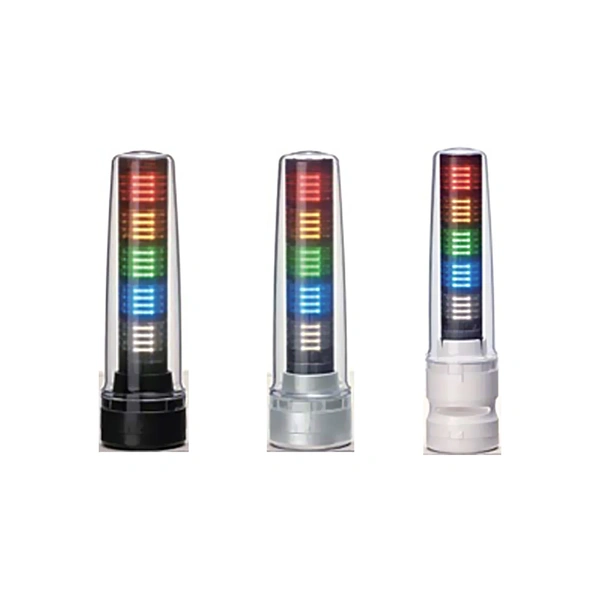

Patlite LS7 signal towers feature a streamlined and smooth outer surface which prevents the accumulation of dust and dirt. This suit use in the food industry where cleanliness is essential. The IP66 enclosure is also suitable for other arduous environments and the casing is resistant to stress cracks where an oil mist is present. The inner lens gives increased contrast and excellent visibility.

This 70 mm diameter signal tower is available with either 3 or 5 colour modules, each with long life LED lights that can be continous or flashing.

Supply is 24 V DC with typical current consumption 80 to 140 mA plus 40 mA if the optional 85 dB two-tone buzzer is chosen.

Enclosure is IP66, for both continuous and flashing/buzzer versions.

The LS7 is certified CE, UL and RoHS.

Further options are body colour (ivory, black or silver), mounting brackets (foot or wall), connection (lead wire or quick-disconnect M12 plug). A simple 3 bolt fixing allow fast installation with all fasteners hidden to avoid dirt traps.
