Signal lights from Patlite

Flashing beacons for machine status & safety

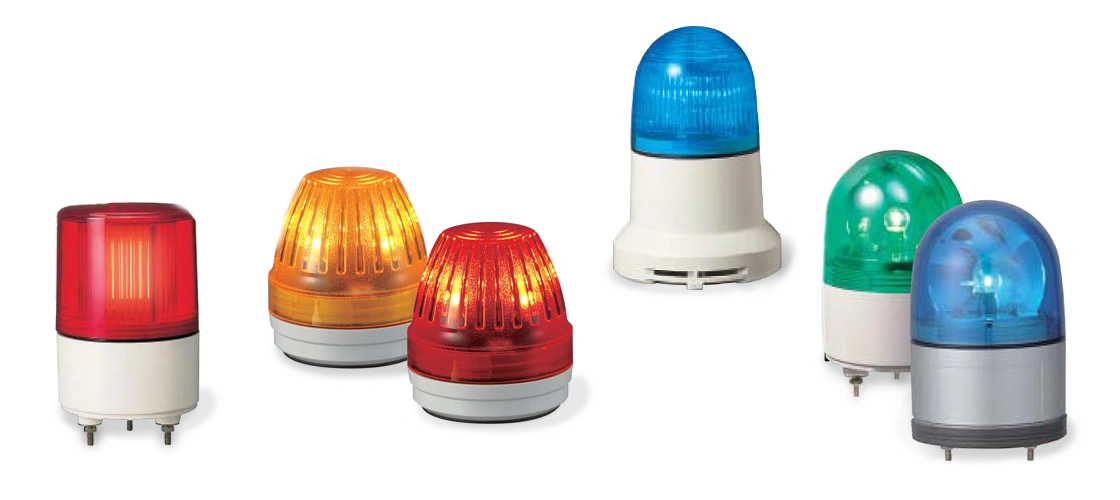

Patlite signal lights are non-rotating warning lights (flashing or continuous) with optional audible alarm and long-life LED bulbs. Colours are red, amber, blue, green and white. Diameters are from 57 to 100 mm. LED bulbs and the simple construction ensure a long maintenance free life. Options include simulated rotation, strobe and Xenon bulbs.

NEW type NE-CL7 multi-colour signal lights - 7 available colours in one unit. The NE-CL7 is a space saving alternative to signal towers capable of up to 7 status signals: white, red, yellow, green, light blue, blue and purple.

Hightlights:

  • attractive pricing
  • LED bulbs are maintenance free
  • IP67 protection suits all indoor applications
  • body diameters 57 mm with opaque lens
  • supply 12-24 VDC
  • easy connection with only 3 wires to define the 7 colours

Type NE, compact diameter 57mm signal light with long-life LED bulbs, maintenance free, IP65 enclosure and suitable for use indoors or out. Supply 24V dc, approvals CE and RoHS.

Types PES, PEW, 82 mm diameter domed signal lights with maintenance free LED bulbs and IP54/55 enclosure. Three patterns of flashing at 60/120/180 per minute. Type PEW has built in alarm adjustable up to 85 dB at 1 m. Approvals CE, RoHS and cRU at 24 V supply (100, 120 and 230 V AC also possible).

Type KHE, 100 mm domed signal lights with long-life LED bulbs enclosed to IP65, maintenance free and approvals CE, RoHS and cUL, supply 24 V DC. Three flashing patterns: simulated rotation, strobe and blinking.
