Accurate speed holding over a 1:133 speed range

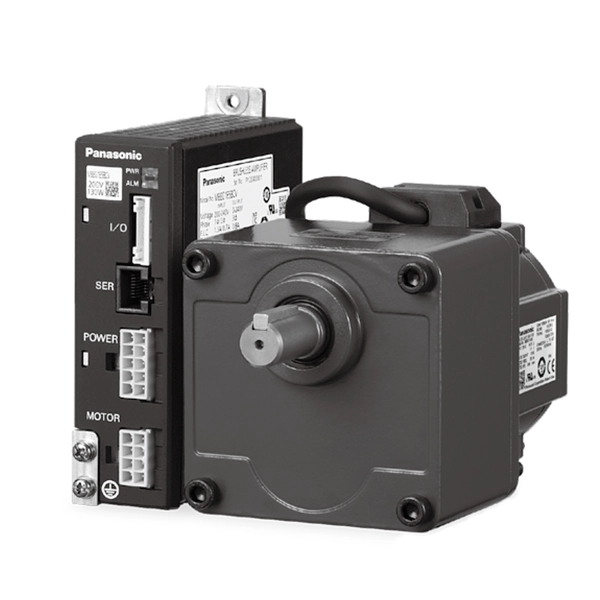

The new Panasonic Minas GV is a range of compact geared motors and drives for precise speed control over a 1:133 speed range. These economic geared motors are available at 50, 90 and 130 W with rated output speeds from 1.5 to 1,000 r/min. Panel mounted drives require single phase supply at 200-240 V and are controlled by RS485 or external keypads.

Motor
Power (W)

Body size
(mm)

Motor
rated
torque
(Nm)

Peak torque (60s)
(Nm)

Possible
Gear
ratios

Max
Output
torque
(Nm)

50

80

0

0

3-1,800

8

90

90

0

0

3-2,000

29

130

90

0

1

3-2,000

29

We recommend the use of a torque limiter for ratios above 30.

Minas GV drives are designed for panel mounting with IP20 enclosure. Dimensions are 35 wide x 120 high x 105 deep. There is 1 analog input, a RS485 input and 8 digital set speeds.

PANATERM operating software is available free of charge.

Two remote keypads are optional, either analog or digital. Other options for the Minas GV are pre-configured cables, a RFI noise filter and a cable for connection to a PC.
