4-point positioning for precise suit

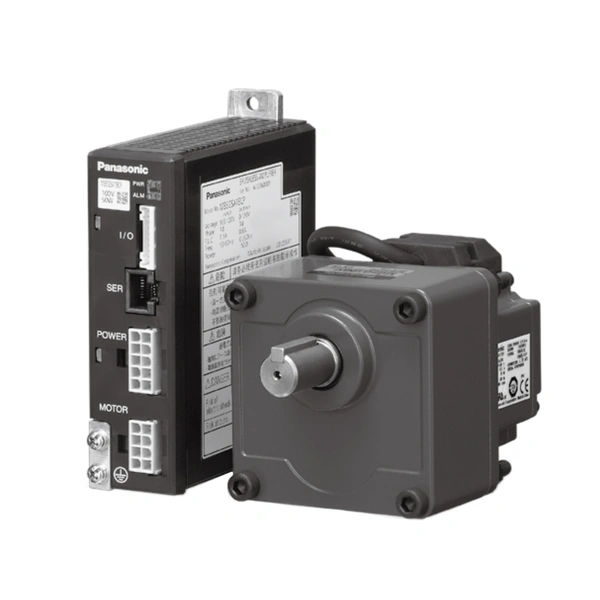

The MINAS GP is similar to the GV models, but these drives are designed for 4-point positioning with S ramps for smooth operation. The same 50, 90 and 130 W powers are available with rated output speeds 5 to 600 r/min. Typical applications are indexing, portioning, reciprocating and door drives. Positioning accuracy is +5° at the motor.

Motor
Power (W)

Body size
(mm)

Motor
rated
torque
(Nm)

Peak torque (60s)
(Nm)

Possible
Gear
ratios

Max
Output
torque
(Nm)

50

80

0

0

5-500

8

90

90

0

0

5-500

29

130

90

0

1

5-500

29

We recommend the use of a torque limiter for ratios above 30.

Minas GP drives are designed for panel mounting with IP20 enclosure. Dimensions are 35 wide x 120 high x 105 deep. There is 1 analog input and a RS485 input.

PANATERM operating software is available free of charge.
