Rotating beacons from Patlite

Flashing safety warning lights

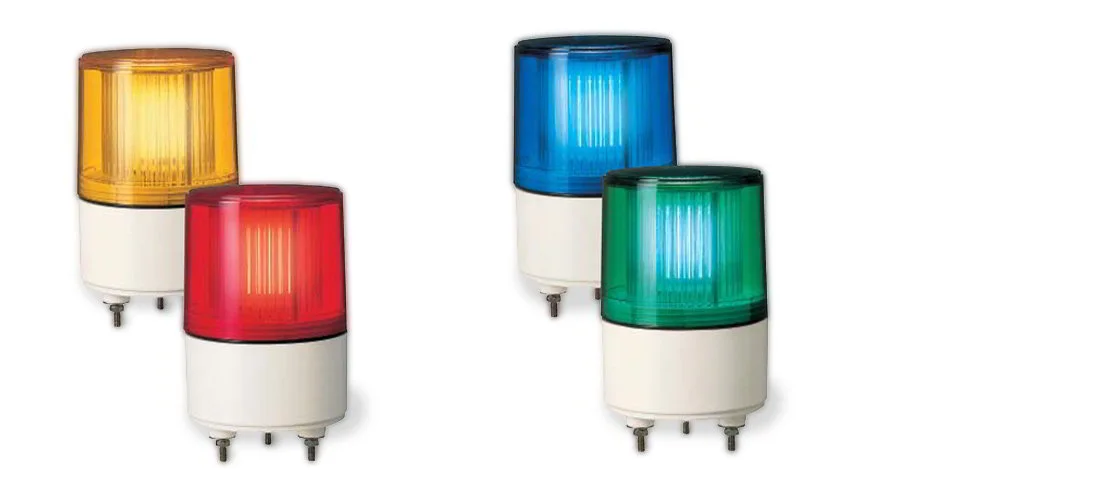

Patlite rotating beacons use bright bulbs and reflecting mirrors to create light signals for status, warning and safety. Generally used in industrial environments indoors and outdoors, they have enclosures from IP54 to IP66. Most models feature long-life LED bulbs and brushless motors are optional. Colours are red, amber, green and blue.

The flashing light signal from the LED bulbs in the Patlite safety beacons gives a highly visible warning of problems or emergency conditions, increasing machine safety.

TYPE RLE LED BEACON LIGHT:

  • Diameter 82 mm
  • Enclosure IP65
  • Supply voltages 12/24
  • DC, 100/200 AC
  • Bulb type LED
  • Rotations 120/min

Note - this model is not CE certified and approval will be needed as part of a machine design.

TYPES RKE/RHE/RKEM/RHEM LED BEACONS:

  • Diameter 100 mm
  • Enclosure IP55
  • Supply voltages 12/24
  • DC
  • Bulb type LED
  • Rotations 120/min

RK models have a domed light, RH models are square shaped. RKEM and RHEM have brushless motors for long life. Optional 90dB audible alarm.

TYPES RFT/RFV LED BEACONS WITH SOUND:

  • Diameter 100 mm
  • Enclosure IP54
  • Supply voltages 12/24V
  • DC
  • Bulb type LED
  • Rotations 115/min
  • Voice & sound

Type RFT has 32 audible sounds programmed by SD card. Type RFV has a voice annunciator for up to 90dB adjustable volume and 63 second message length.

TYPES WH-A/WK-A SAFETY BEACONS:

  • Diameter 100 mm
  • Enclosure IP54
  • Supply voltage 12/24
  • VDC
  • Bulb type incandescent Rotations 170/min

Compact wall mounted beacons with optional 90 dB alarm

TYPES RLR LED WARNING LIGHT:

  • Diameter 162 mm
  • Enclosure IP66
  • Supply Voltage 12/24/48
  • VDC
  • Build type LED

Designed for outdoor & Mobile applications, the RLR has a long-life brushless motor for 10-12K hours maintenance free operation. Ambient temperature range -30 to +70C and high shock resistance up to 11 g.
