Barrel gear shaft flexible couplings
Nylon sleeve gear couplings for shafts to 80 mm
Barrel gear couplings suit shafts 10 to 80 mm and torques 10 to 700 Nm. They are generally available from stock.
Type:
3-piece coupling, torsionally soft with backlash
Construction:

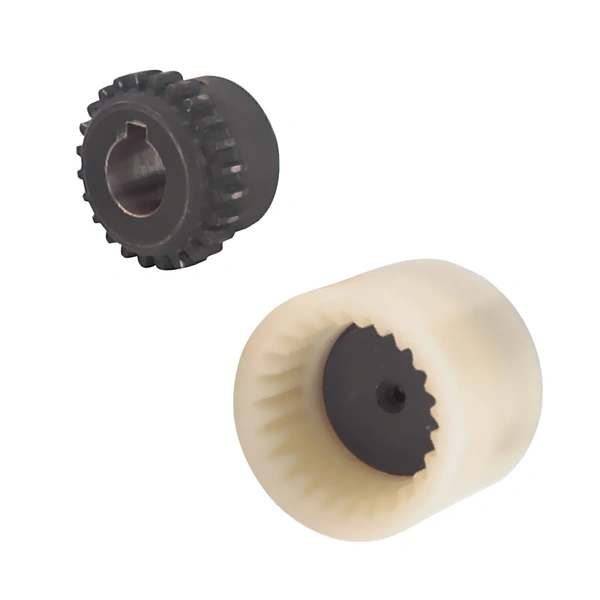

Steel hubs with crowned barrel shaped teeth, sleeve in 6.6 super polyamid.
Applications:
Ideal where axial sliding assembly is needed or if the coupling needs to be electrically insulating.
Size | Rated torque Nm | Outside dia mm | Length mm | Max bore mm |
14 | 10 | 40 | 50 | 14 |
19 | 16 | 48 | 54 | 19 |
24 | 21 | 52 | 56 | 24 |
28 | 45 | 66 | 84 | 28 |
32 | 60 | 76 | 84 | 32 |
38 | 81 | 83 | 84 | 32 |
42 | 100 | 92 | 88 | 42 |
48 | 142 | 100 | 104 | 48 |
65 | 380 | 140 | 144 | 65 |
80 | 700 | 175 | 186 | 80 |
Max speed 14,000 r/min.
